VCT36
- Split core for easy installation
- Compact design
- Available in primaries from 100A to 600A
- 5A Secondary
- 1m Lead length
- Clear arrow marking to ensure correct installation
- Wire colour: White – S1 | Black – S2
Specification
| Primaries | 100A to 600A |
| Secondary | 5A |

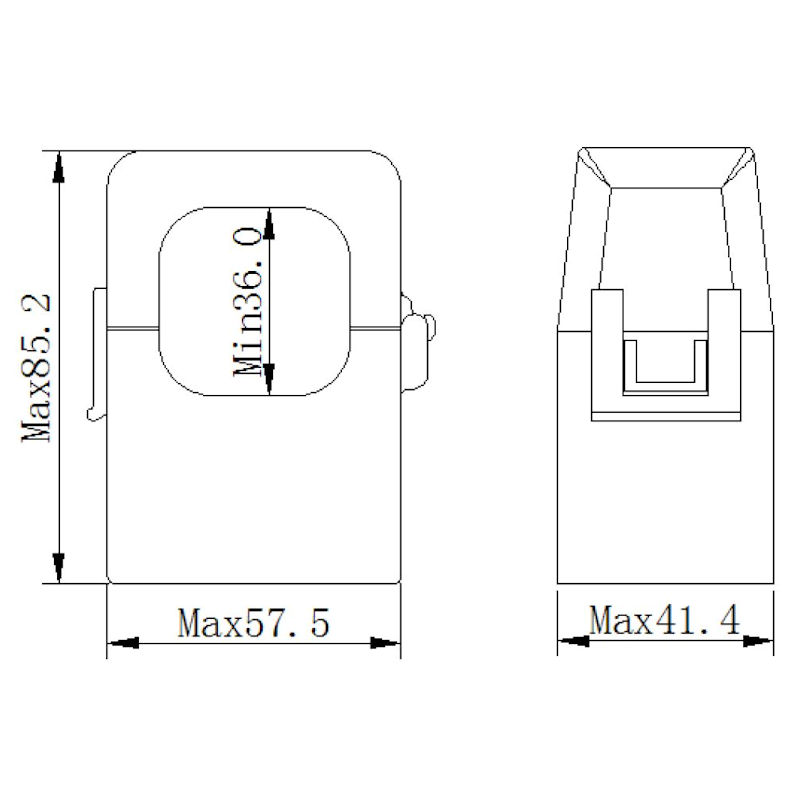

| Aperture | 36mm |
| Accuracy Class | Class 1 |
| Burden | 1.2VA |
| Lead Length | 1m |
| Operating Temperature | -15°C to +40°C |
| Flame Retardant Properties | UL 94V-O |
| Rated Voltage | 660V |
| Insulation Voltage | 2KV |
| Rated Frequency | 50 – 60Hz |
| Certification | CE |
